M22 residential yacht

Antrieb

500 hp marine diesel

draught

fuselage shape

CE category

Welcome to a new world of residential yachts

Relaxing at home or at work
In the comfortable Wohnyacht Experience a new way of life.

Living Spaces on the Water

This model is one of the most innovative and sustainable “furniture and living concepts” currently available on the market. As a modern symbiosis between Penthouse and residential yacht, this model has its own fascination.

The aim is “sustainable and intelligent living space” on water that you can use for both private and commercial purposes (holiday home & floating office).

High-quality steel construction
Sustainable and stable in value
Safe — bow and stern thrusters, pole anchors
Autonomous — own waste and inflow water treatment
Ecological — solar or diesel hybrid drive
Modular (freely selectable layout, apartment, office, event location)
Full basement — sleeping cabins and storage spaces
Profitable as a floating holiday home or office

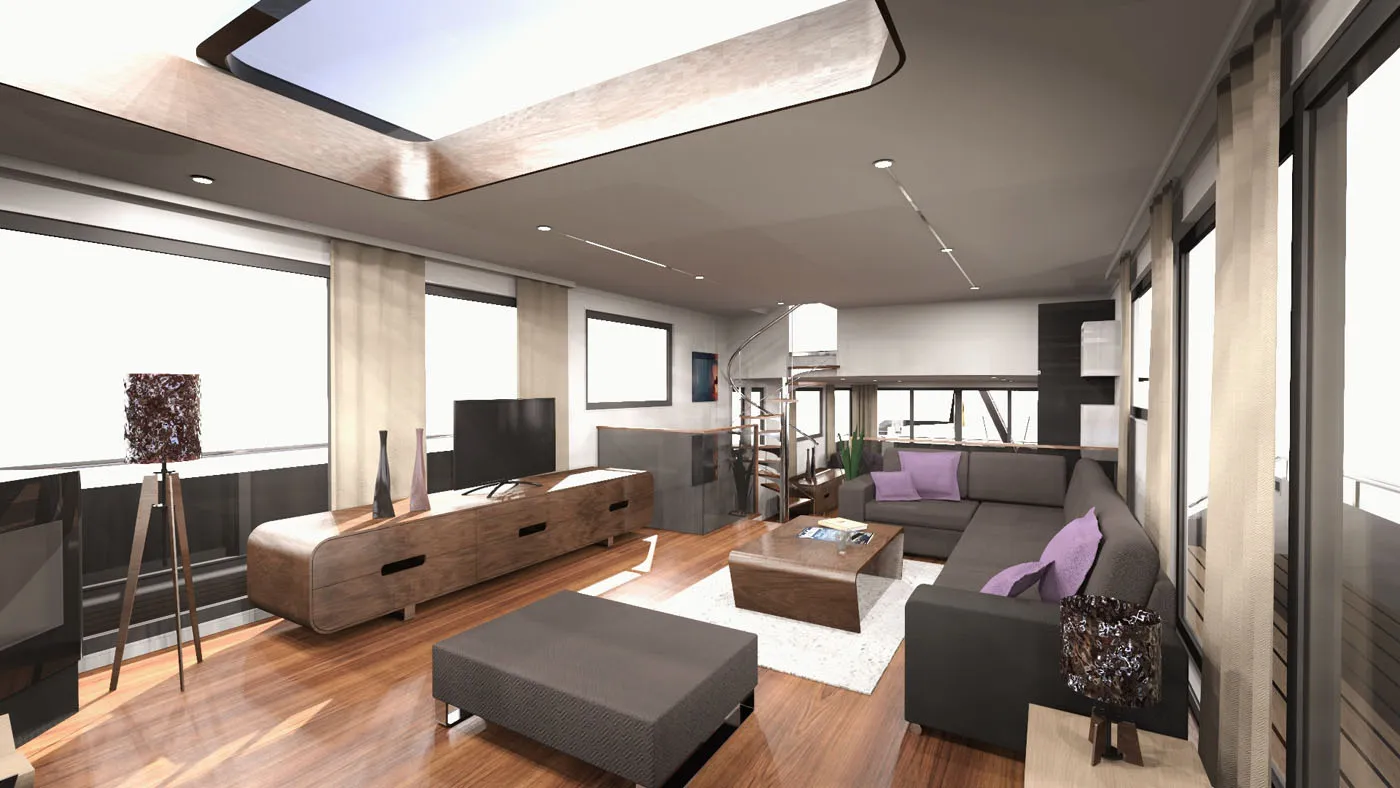

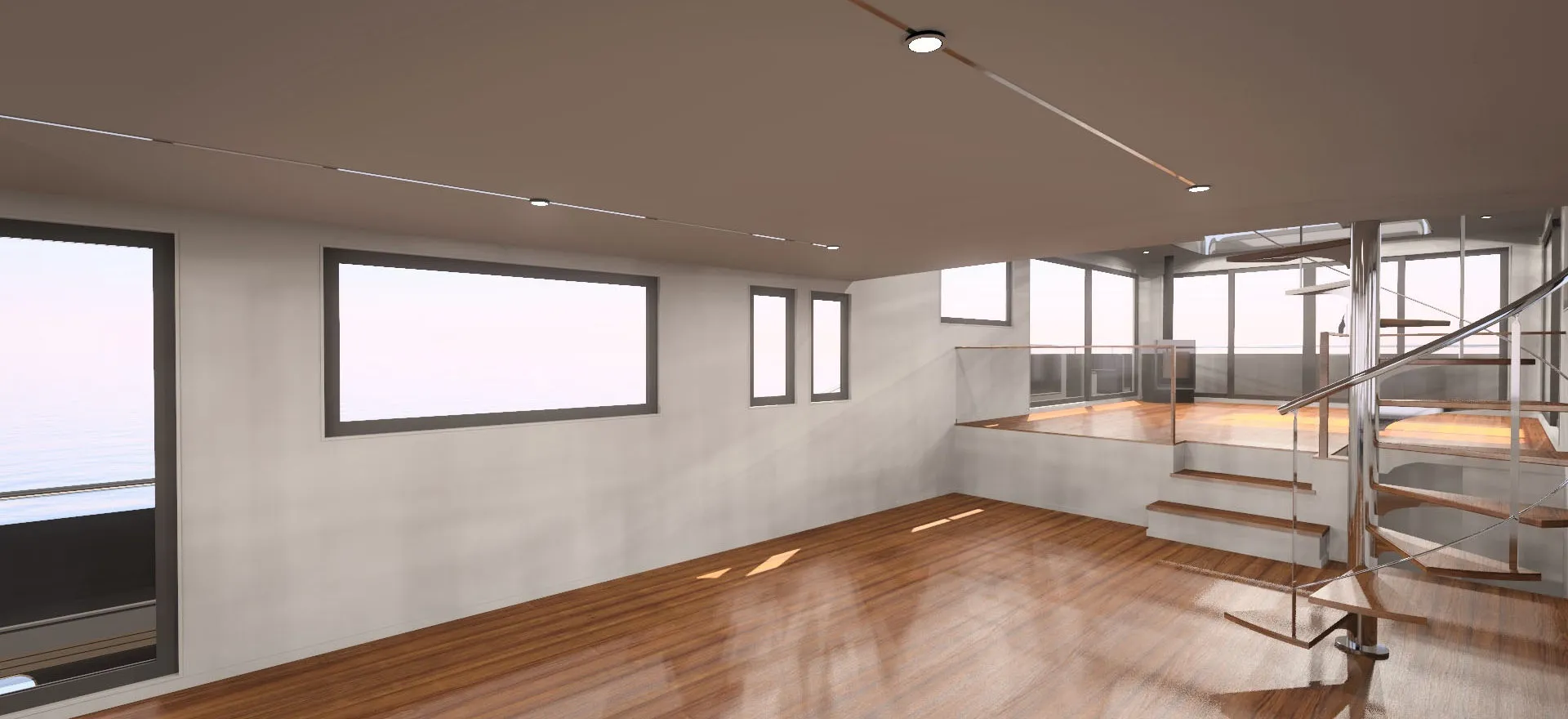

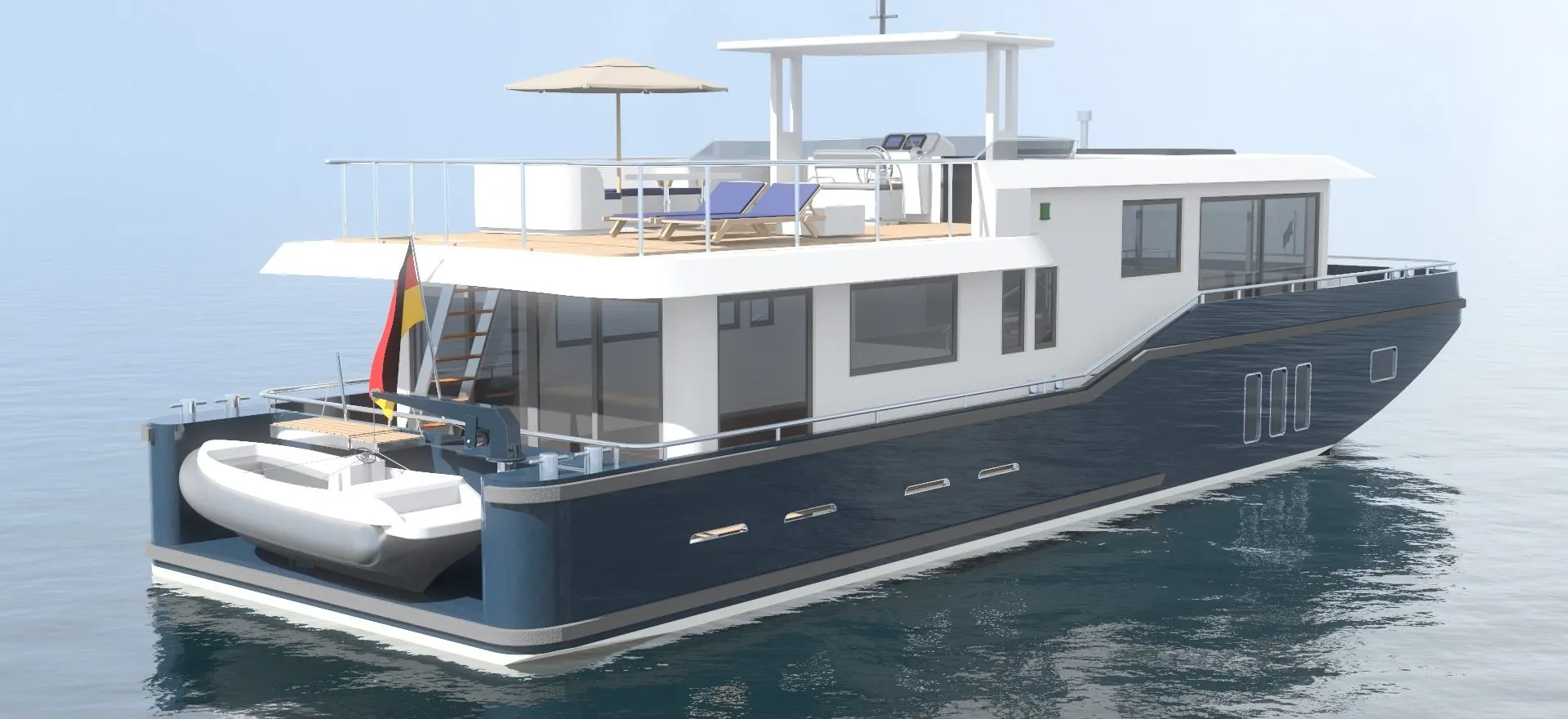

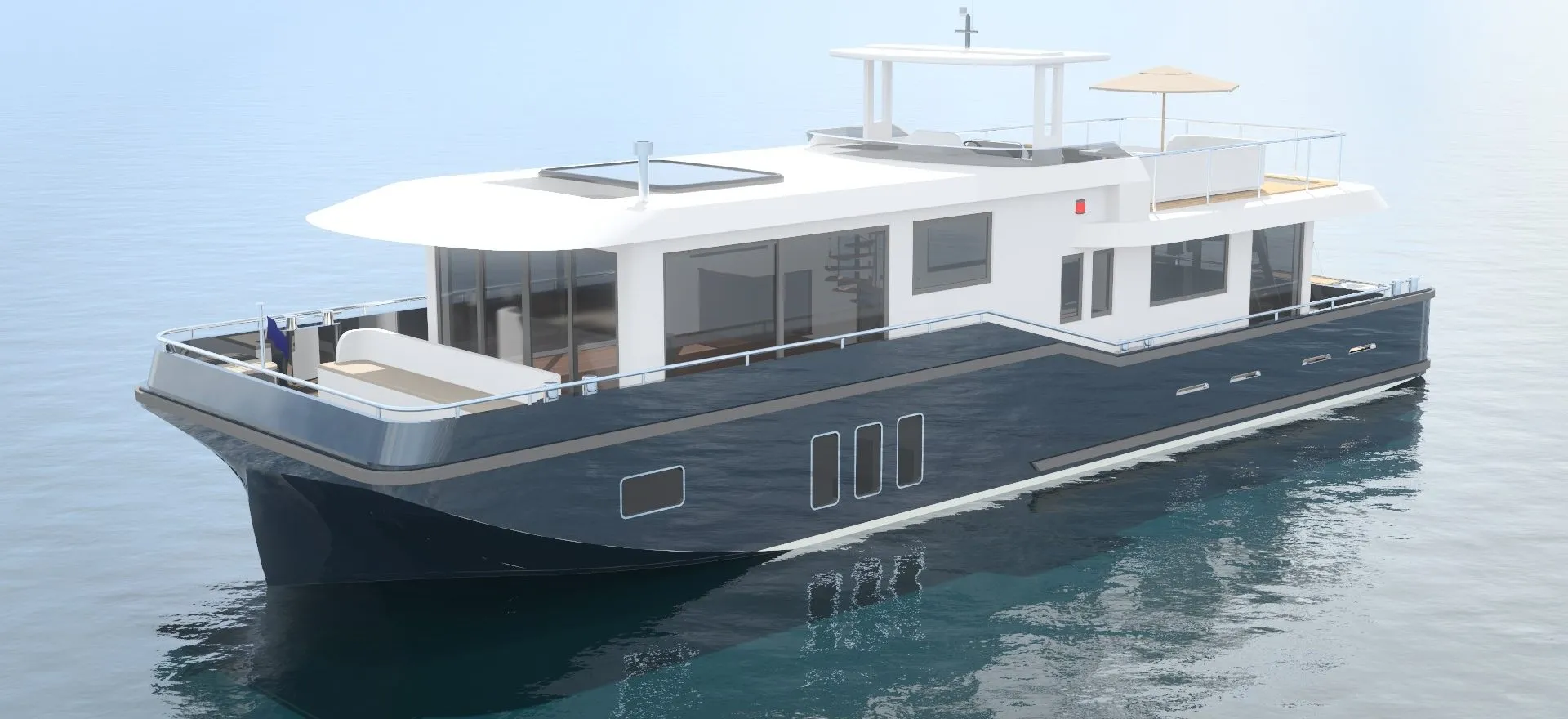

The “20 meter LONG RANGE SHIP” is the perfect travel ship, which allows you to make long sea trips safely and quickly. The outer design is reminiscent of a seagoing yacht, but on the inside, a real house-sized space wonder awaits you on over 120 square meters. Rectangular walls, no unnecessary corners or fixtures, perfect for taking all the furniture you love with you to your new mobile home.

Imagine yourself in the harbor of Cape Town, Auckland or Miami. The weather lures you to fish, travel or simply relax at sea. Start leashing and let's go on the journey. Two 6-cylinder engines or a hybrid engine allow the 50-ton ship to glide confidently through the water.

For the first time, the yacht architects have developed a special ship hull that cuts the waves and breaks them through a tall bully. With the “CE Category A” This moving houseboat defies waves up to 2 meters high. Equipped with 2 John Deere marine diesel engines, you can reach top speeds of up to 15 knots.

All sqm2 sizes are approximate dimensions and depend on individual planning.

Plug & Play, or would you prefer a turnkey residential yacht?

Do you have precise ideas and design preferences that you would like to incorporate into your boat? Would you like to save money and do various installations yourself?

No problem As”Plug & Play solution“You will be offered the perfect installation of your bathroom and kitchen furniture. Together with the yacht architect, you plan the bathroom, specify the position of connections, sockets, outlets, etc., and it is built with millimetre precision so that you can enjoy your dream furniture on the water. Design your second life according to your wishes. We advise you individual and comprehensive, from planning to financing.

Sailing areas

These models with 30 cm freeboard (higher hull) are ideal for traveling on rivers and coastal waters. As a full-fledged sports yacht, you can moor in any marina. We would be happy to advise you on transportation and mooring.

CE Category A — high seas

Designed for extended trips in the high seas, during which weather conditions with a wind force of over 8 (Beaufort scale) and significant wave heights of over 4 m can occur and which these boats can consist largely of their own power, but exclusively extreme weather conditions (hurricanes, etc.).

Are you looking for a Berth?

One of the unique advantages of this home is that they are fully-fledged and safe travel vessels that are also registered as sports boats. Because of this special position, you can moor in any port with a ship like this, just like a yacht.

Technical details

Basic equipment/fuselage

Splitlevel increased trunk with 6 portholes
stabilizers

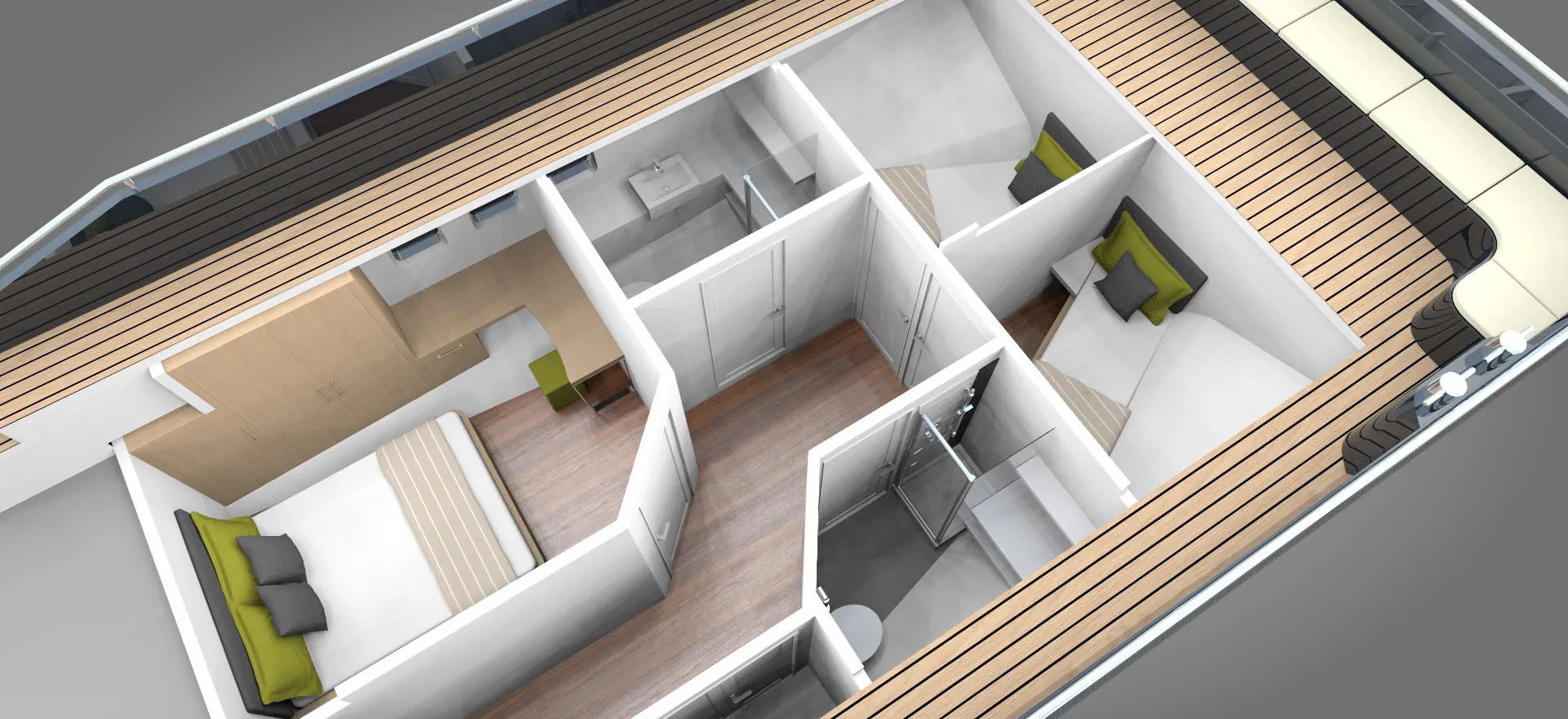

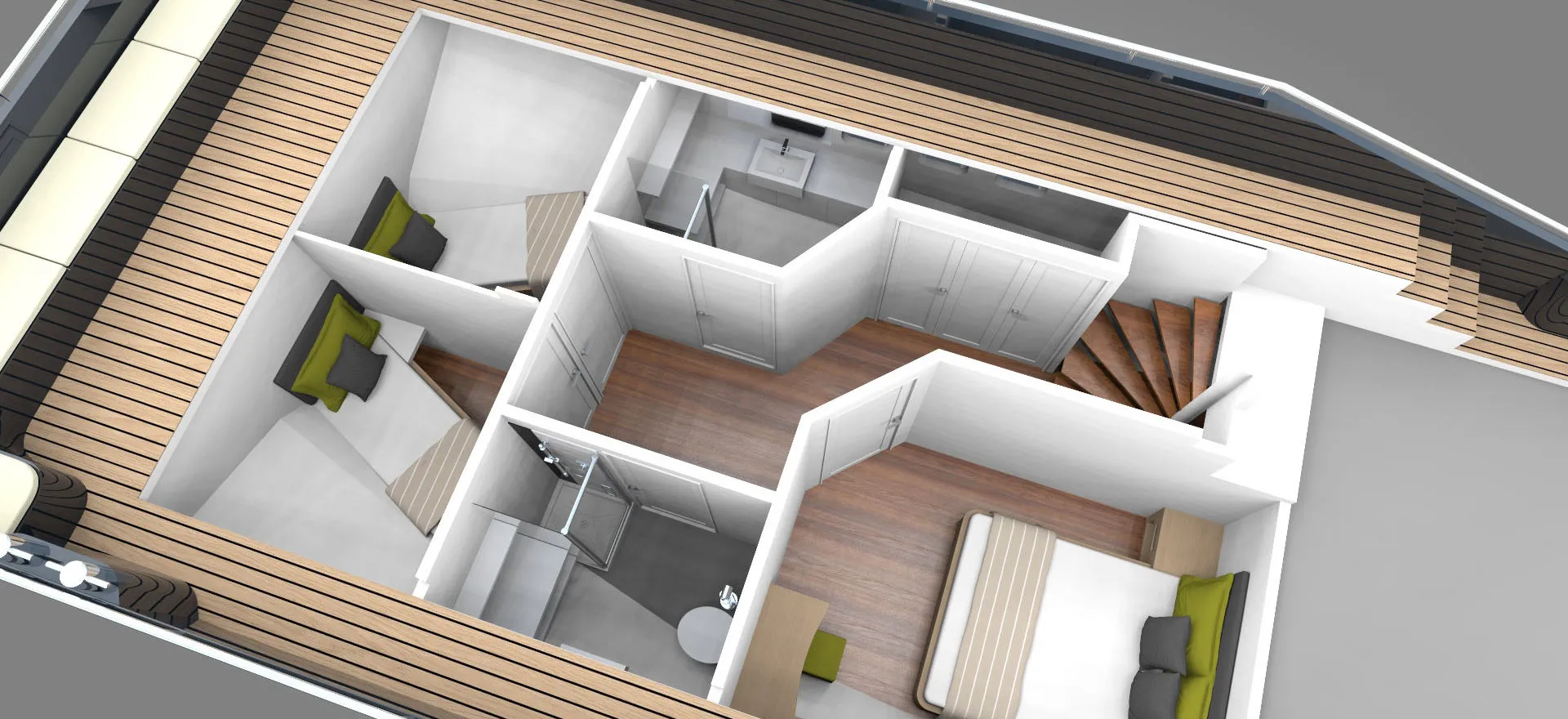

In the front 2 rooms plus shower and toilet at full floor height
Access via stairs in the living room
Midway large owner's cabin with panoramic windows
6mm epoxy-coated steel with 25 year warranty
5 mm steel structures insulated from the inside
Double glazed aluminum windows in the desired color
Hull foamed up to the waterline and insulated
Deck covering painted in desired color with anti-slip coating
8 solid stainless steel bollards and 6 stainless steel cleats
All-round stainless steel railing at the bottom
Small stainless steel railing on top of deck lounge
stainless steel stairs to deck lounge
stainless steel steering position with John Deere panel on flybridge (tachometer, temperature, etc.)
Interior steering position
1 x 45 kg Poole Anchor
Special Equipment: GPS, plotter, echo sounder, autopilot, anchor winch
Rear deck hatch with stainless steel stairs to the basement
LED all-round lighting outside

Basic equipment/on-board technology

Air conditioning chiller package
2x 200 hp — 4 cylinder John Deere Marine Turbo Diesel TIR3 emission
ZF transmission and oil-lubricated shaft system
2500 liter water tank
1000 liter heating oil tank
3000 liter diesel tank
2000 liter waste tank (conventional via suction)
Kabola — HR 500 oil central heating (with remote control)
Top and bottom radiators (living room, bathroom, bedroom)
2 radiators in the cellar
Central board panel
battery pack
All rooms are equipped with GIRA sockets
16 amp shore connection with VICTRON converter

Basic equipment/interiors

Ceilings with stretch ceiling and LED lighting
Walls coated with wood design panels
Plastic parquet flooring (real parquet on request)
On request, we can install your brand kitchen

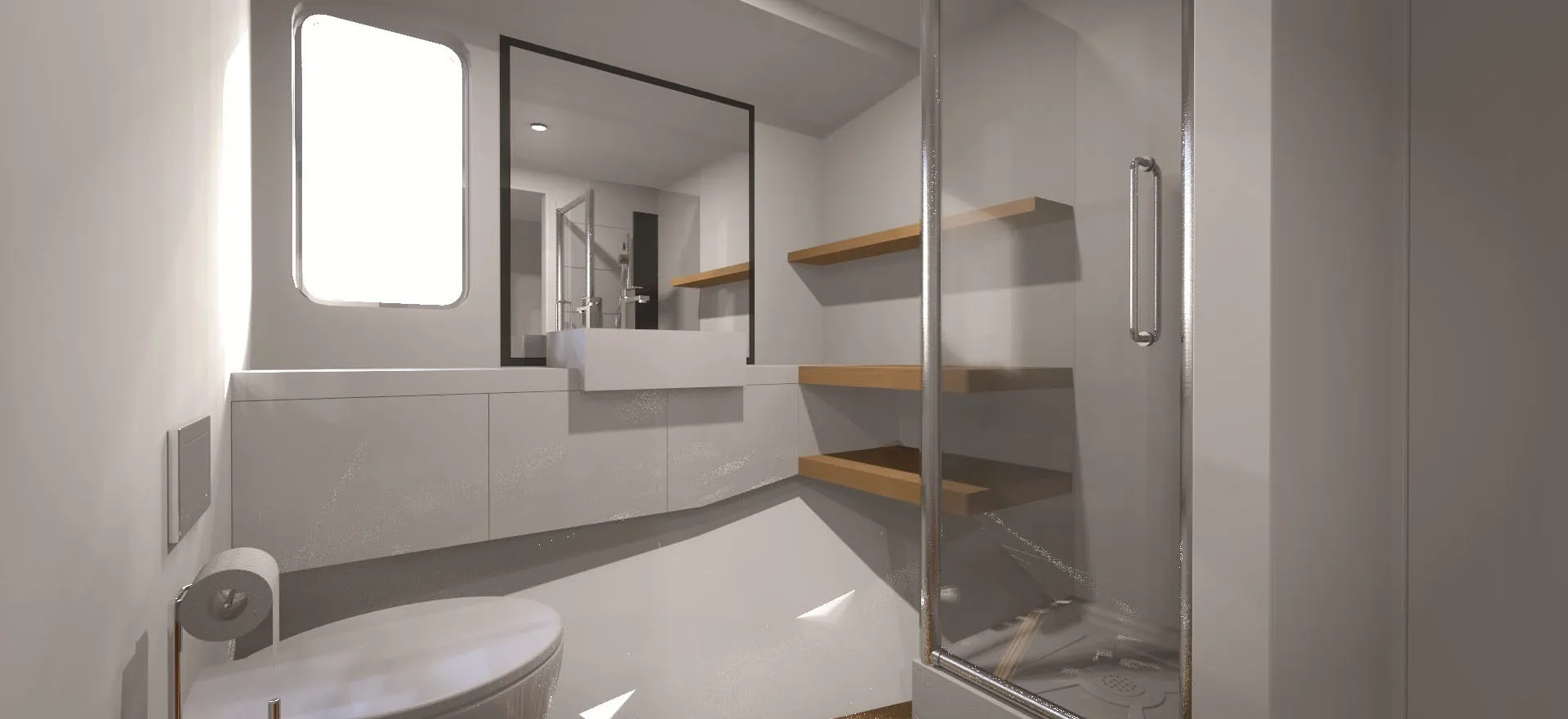

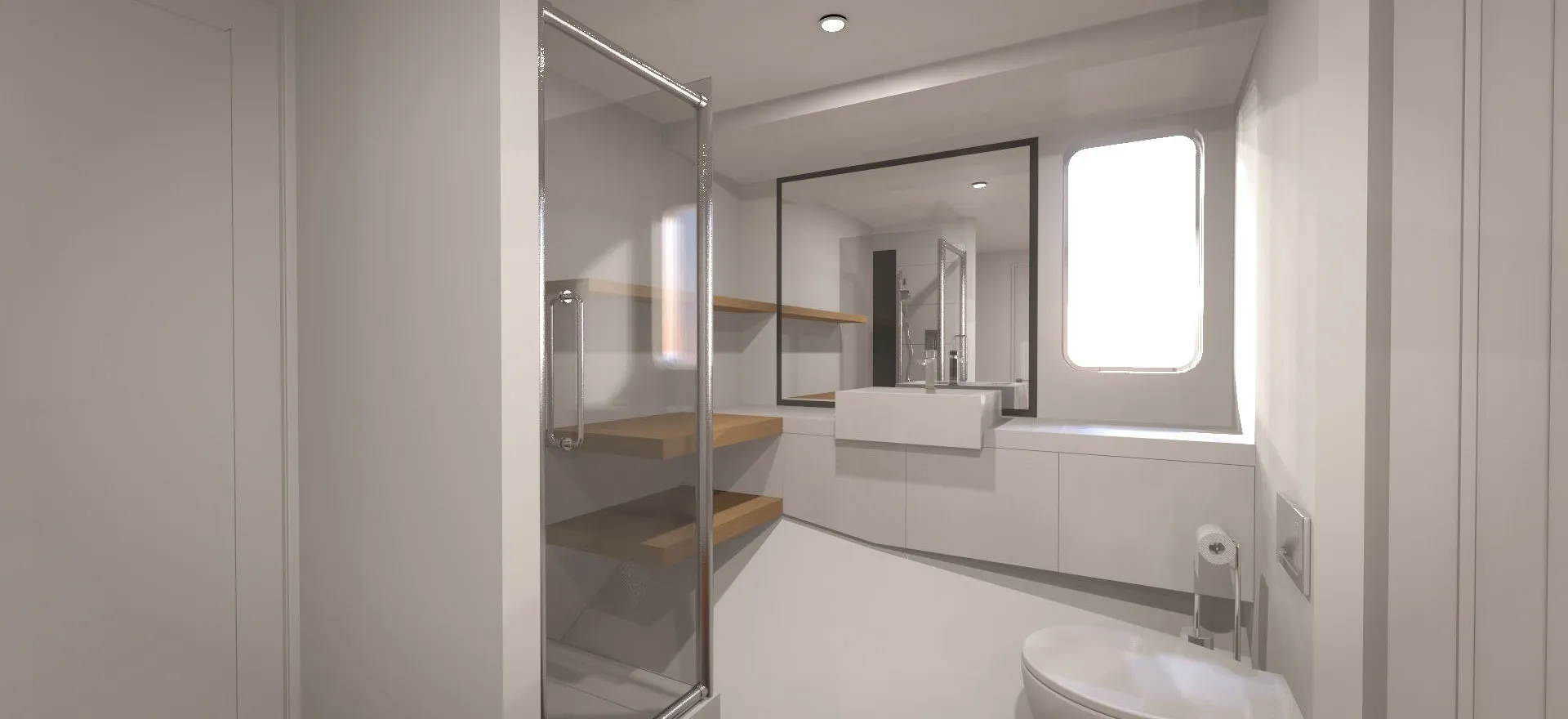

Basic equipment/bathroom

washbasin,
shower,
toilet,
Grohe faucets

Perfectly equipped for long sea trips

Would you like to explore bays and harbours along the coasts of the world and stay where you like? On request, we can equip all Long Range models with the following equipment for true independence.

Biological faecal sewage treatment plant (Clear treated water is discharged into the body of water)
Drinking water disinfection and revitalization, extra health on board
solar panels or wind turbine, which creates new energy resources
Lithium ion power storage modules, recharge your batteries and have them at any time
wood pellet heating, Use renewable raw materials
heat pump, Generate energy sustainably
alternator, the power source for emergencies
GPS, autopilot and chart plotter, your navigation system on the water
air conditioning and sunshades
Foldable or hydraulic swim platform
hydraulic deck crane with dinghy
boat garage
parquet flooring
floor heating
woodburning stove
telescopic anchor
Washer and dryer
32 amp on-board network

Yacht benefits

Travel all seas quickly and safely
Up to 25 km/h fast. Powered by John Deere 500 hp marine diesel

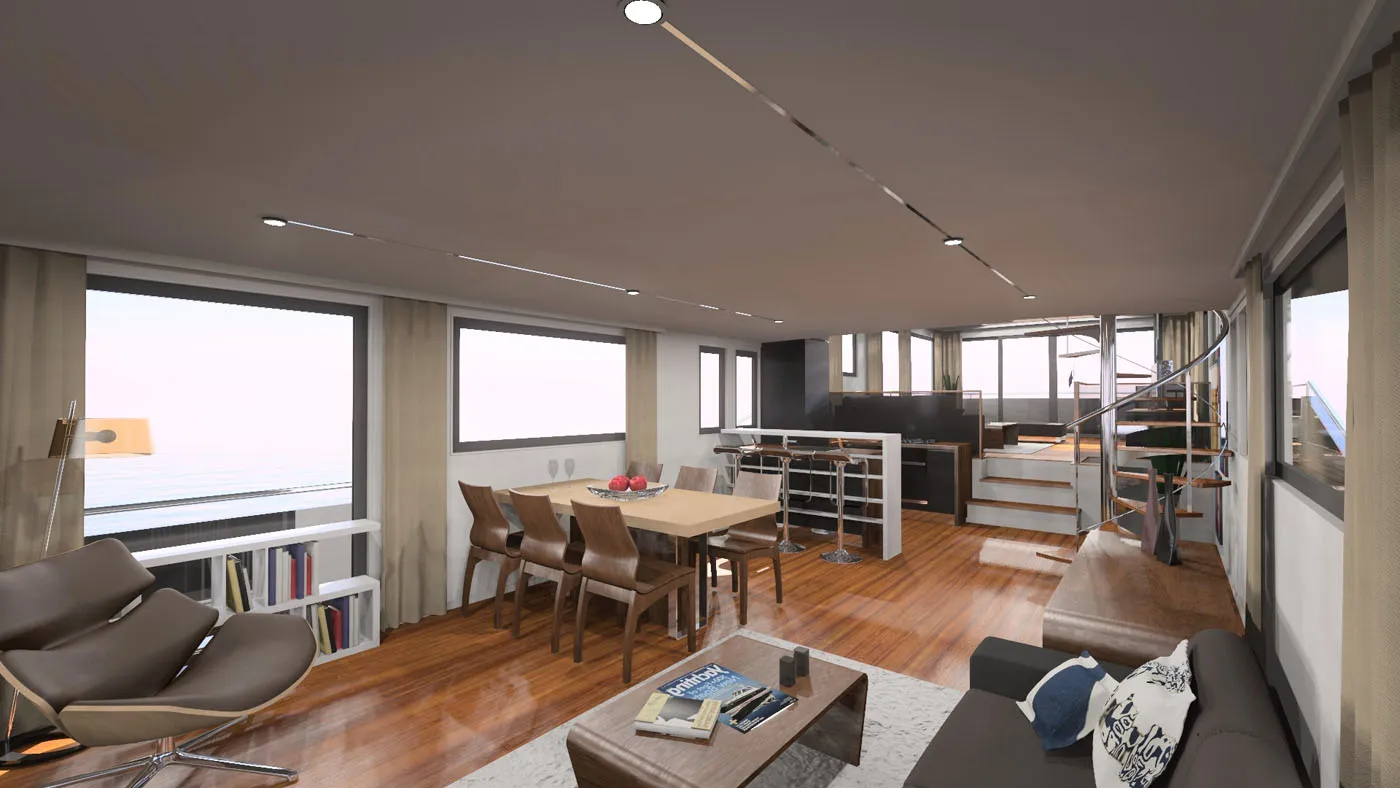

Light-flooded rooms with a direct view of the water
Living and sleeping rooms on 2 separate levels
Straight walls and full floor height, just like in your home
Can be freely furnished with your own furniture
Smart CRUISING HOME, Control your heating via app
Like at home heated cellar, storage and engine room
Anchor with the pole anchor at the push of a button
bow and stern thrusters
The perfect retirement base, can be rented out profitably as floating living space at any time
mobile property, Go on vacation in the world's most beautiful marinas
Instead of neighbors and gardens, Light-flooded rooms with a direct view of the water
Open doors, bring in furniture. Set it up just the way you like

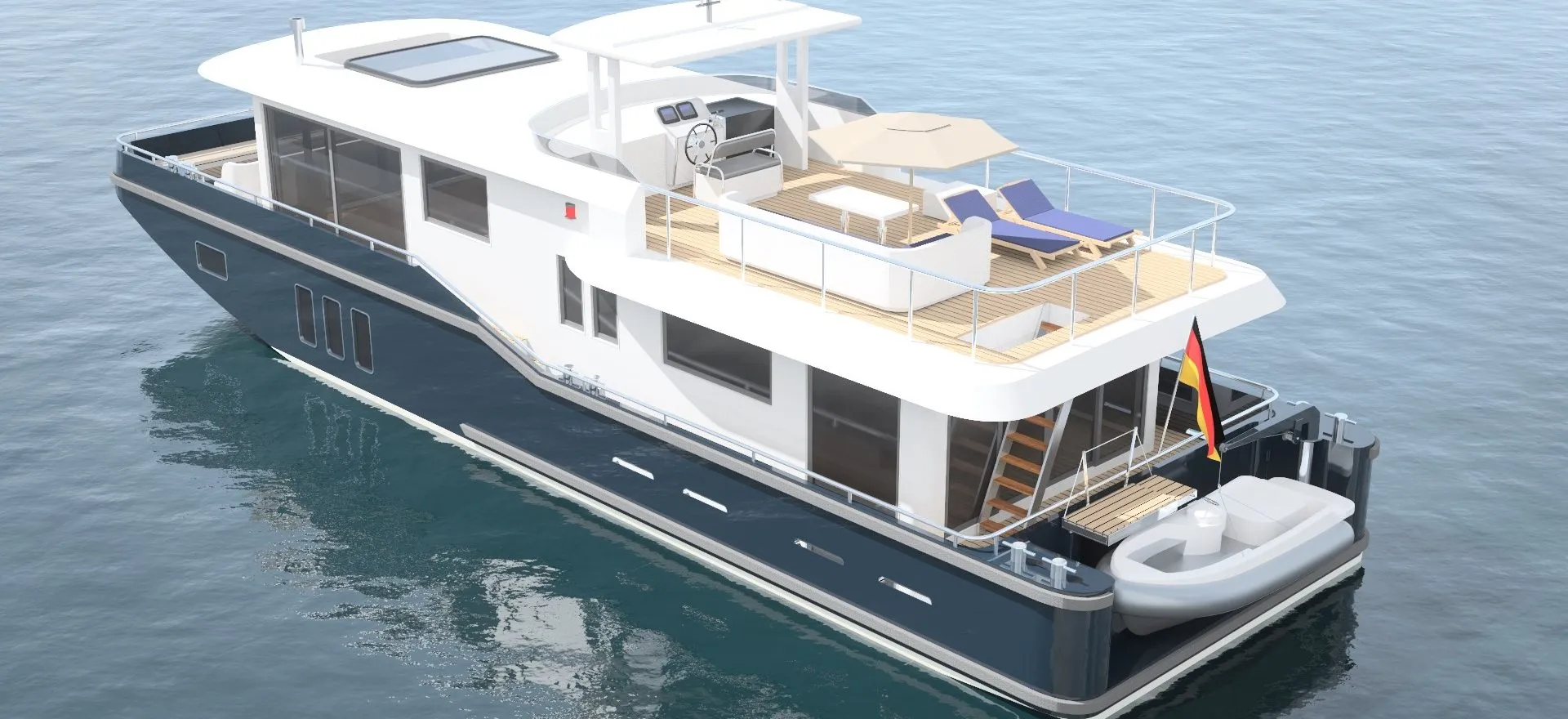

The Sky Deck Lounge, relax and enjoy in the open air
Stable and solid, up to 2 tons ceiling load, ideal for a deck crane and dinghy
A good feeling the 25-year warranty on the hull
manageable, the construction period of 9 months
The mobile holiday home in every marina worldwide

Design Your second life according to your wishes. We provide you with individual advice and comprehensive from planning to financing.

As standard products for leisure purposes, conventional yachts and houseboats are designed in such a way that you “subject to rapid loss of value due to design.” This model is based on a new philosophy: “Building and creating sustainable value”. Designed and built like a tailor-made real house, invest in so-called furniture, which guarantees you an attractive additional income for decades, depending on the location. There are lots of new things to discover, read more.

10 unique residential yacht benefits

1. Sustainable generational product

Live carefree. Thanks to a durable and solid steel construction, we offer you a 25-year warranty on the hull. That is unique.

2. Safety, whatever the weather

Thanks to a high-quality and solid construction in combination with a solid rod anchor, even extreme environmental influences of your Wohnyacht Don't hurt anything. Reassuring

3. Clean, renewable energy

Equipped with solar panels, you can enjoy the convenience of powering yourself independently. Excess energy produced, simply feed it profitably into the grid. Simply clever.

4. Living autonomously and ecologically

Regardless of any marina infrastructure, you can produce your own drinking water on request, or even treat 100% harmless waste water and discharge it cleanly. It's a good feeling to be at peace with the environment.

5. Healthy and pleasant indoor climate

Thanks to a steel structure and ecological insulation materials, you can enjoy an indoor climate without harmful foreign odors.

6. Intact ecological environment

Sustainable and ecologically sound technologies, such as ultrasonic algae protection or a biological sewage treatment plant, protect the environment. It's a good feeling.

7. Modular technical upgrade at any time

Each Wohnyacht is designed in such a way that you can have new future technologies, such as (Li-ion storage, solar, fuel cell, hybrid... etc.), installed at any time. Maintaining value that makes you happy.

8. Anytime, spatially changeable

Due to the modular design (steel body with flexible dividers), you can Wohnyacht Have it converted at any time for new purposes, whether as a floating office, holiday home, showroom or event location.
Flexibility is key.

9. Your houseboat as a retirement plan

As an innovative “property”, your model offers you the unbeatable advantage of a lucrative holiday home in attractive locations all over the world. Earn money and share the joy of a unique lifestyle. Simply clever.

10. 360 degree service

We offer you a comprehensive 48-hour Europe-wide service for peace of mind.

‍

funding

In the past, houseboat financing was difficult because, in contrast to construction financing, it did not offer a land register entry as collateral. However, the situation has improved steadily in recent years, not least due to growing demand. Through our partner comparison portal, you can now discover suitable offers at attractive conditions.

Compare now

length

20 m

width

Passage height

Usable area

120 sq m

Remodeled space

prize
