M10 houseboat

Antrieb

2x50HP

draught

0.60 m

fuselage shape

catamaran construction

CE category

Basic houseboat equipment

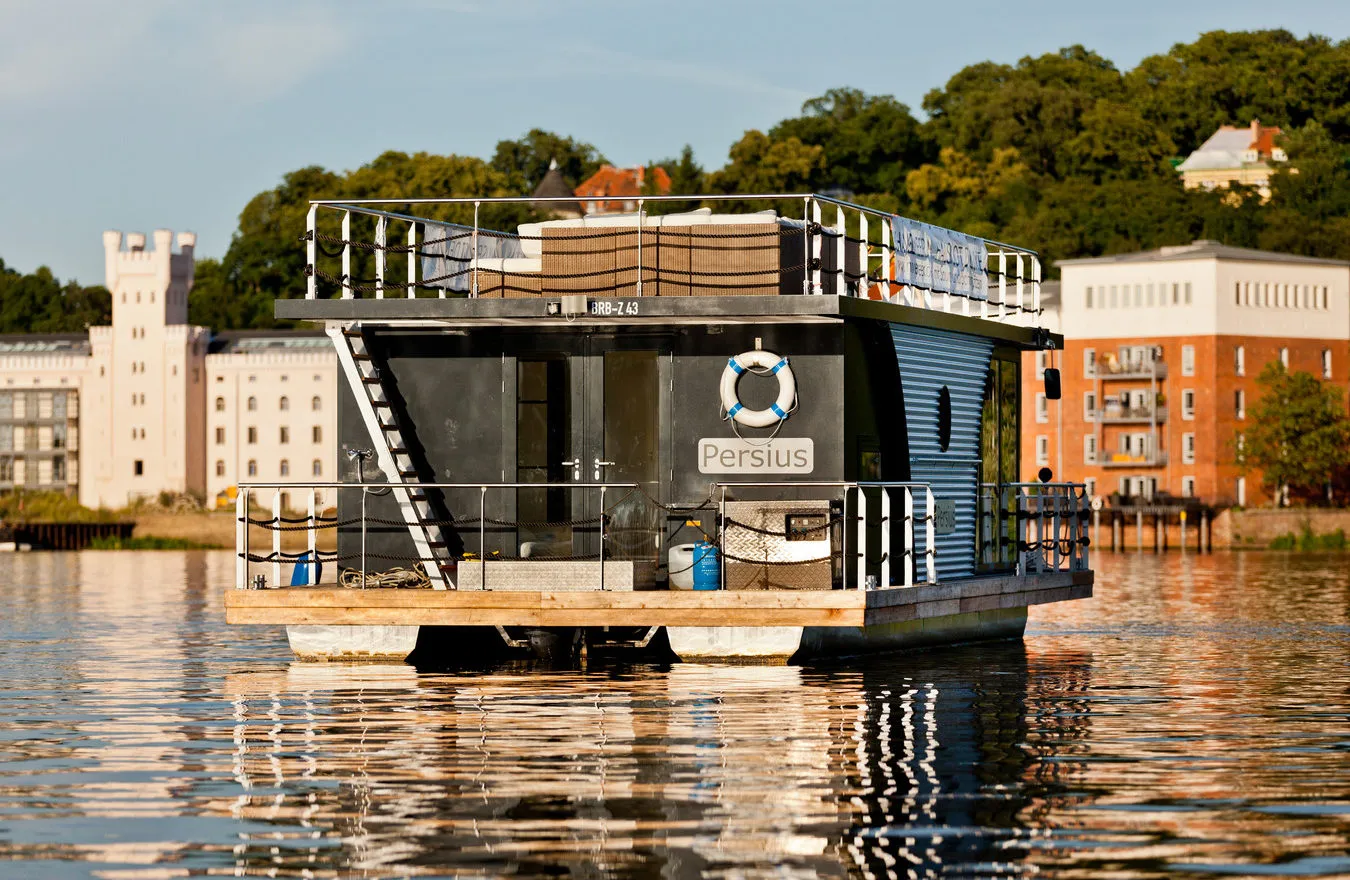

Catamaran construction made of seawater-resistant aluminum with hydrodynamic bow section and motor mount for an engine (optional PE float)
Optional additional floats in the middle if required or due to the design
Sleeping bunk on the upper deck (height approx. 1.1 m) with a possible lying area of 1.60 x 2.00 m
convertible roof (electric raised hard top roof) of the sleeping bunk

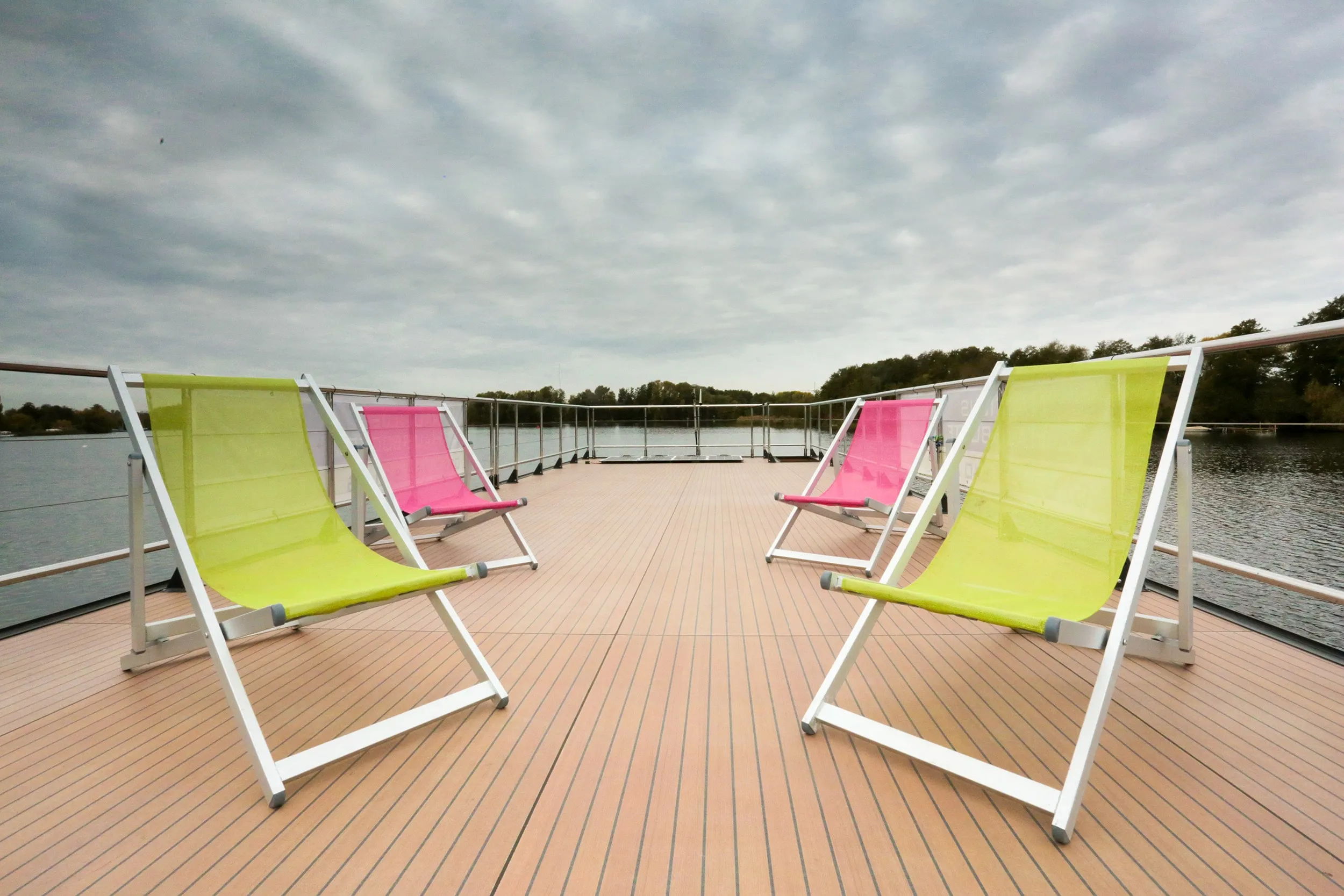

Upper deck approx. 40 m2 with GRP covering (insulated) in RAL color, railing with stainless steel post and handrail and 3 lines of cable
2 external stairs to the upper deck integrated into the rear curves with lighting
Sliding shutters (sun protection systems) running on both sides in rails up to the foredeck
Exterior walls optimally insulated as sandwich panels in RAL color with PUR hard foam insulation (80 mm)

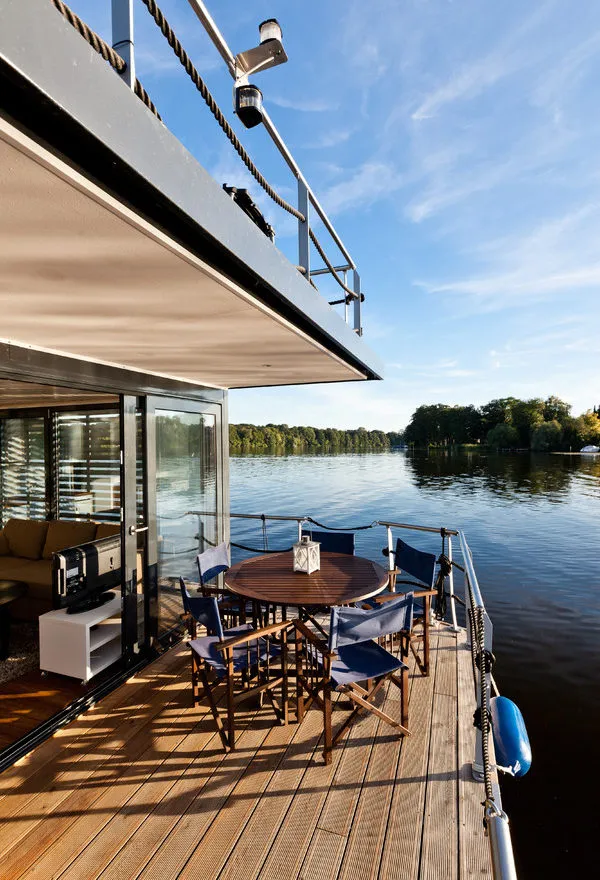

Canopy above the foredeck and aft deck including lighting
Roof edge in RAL color or wood effect
floor, wall and ceiling area with optimal insulation
floor heating
Windows and external doors made of highly insulating, decoupled aluminum profiles with heat-insulating glazing (k-value 1.1) in RAL 7016 (anthracite)

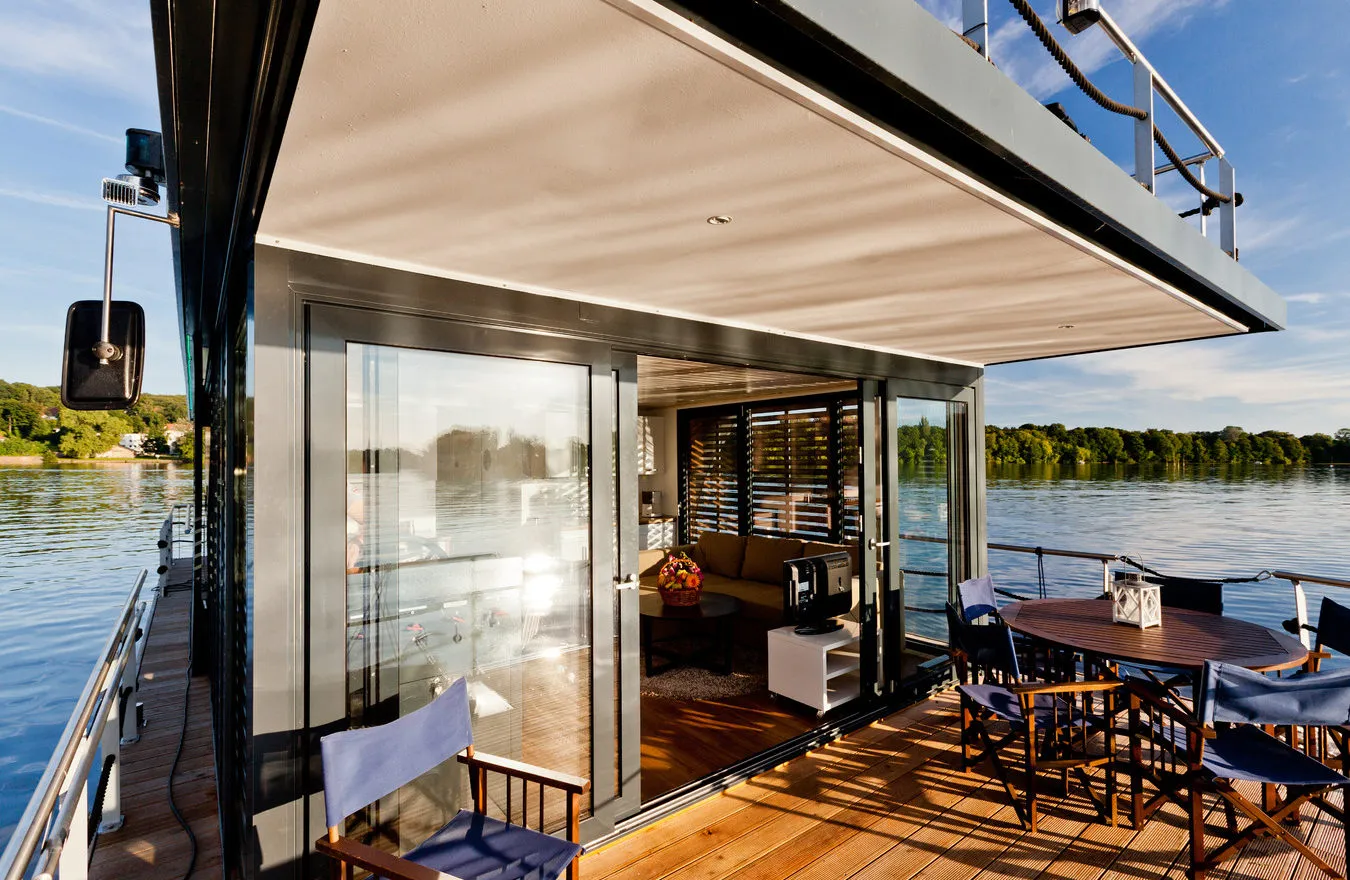

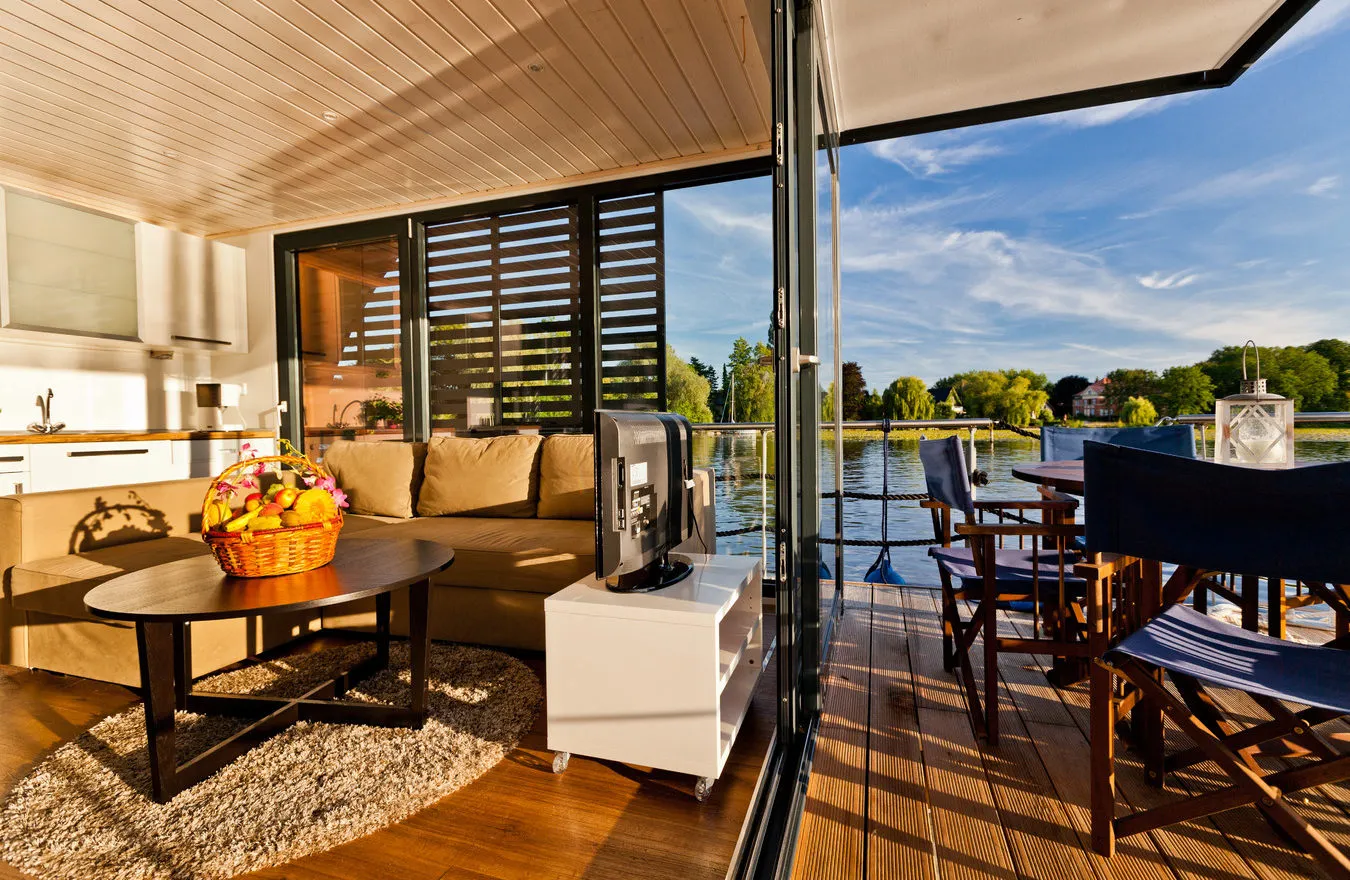

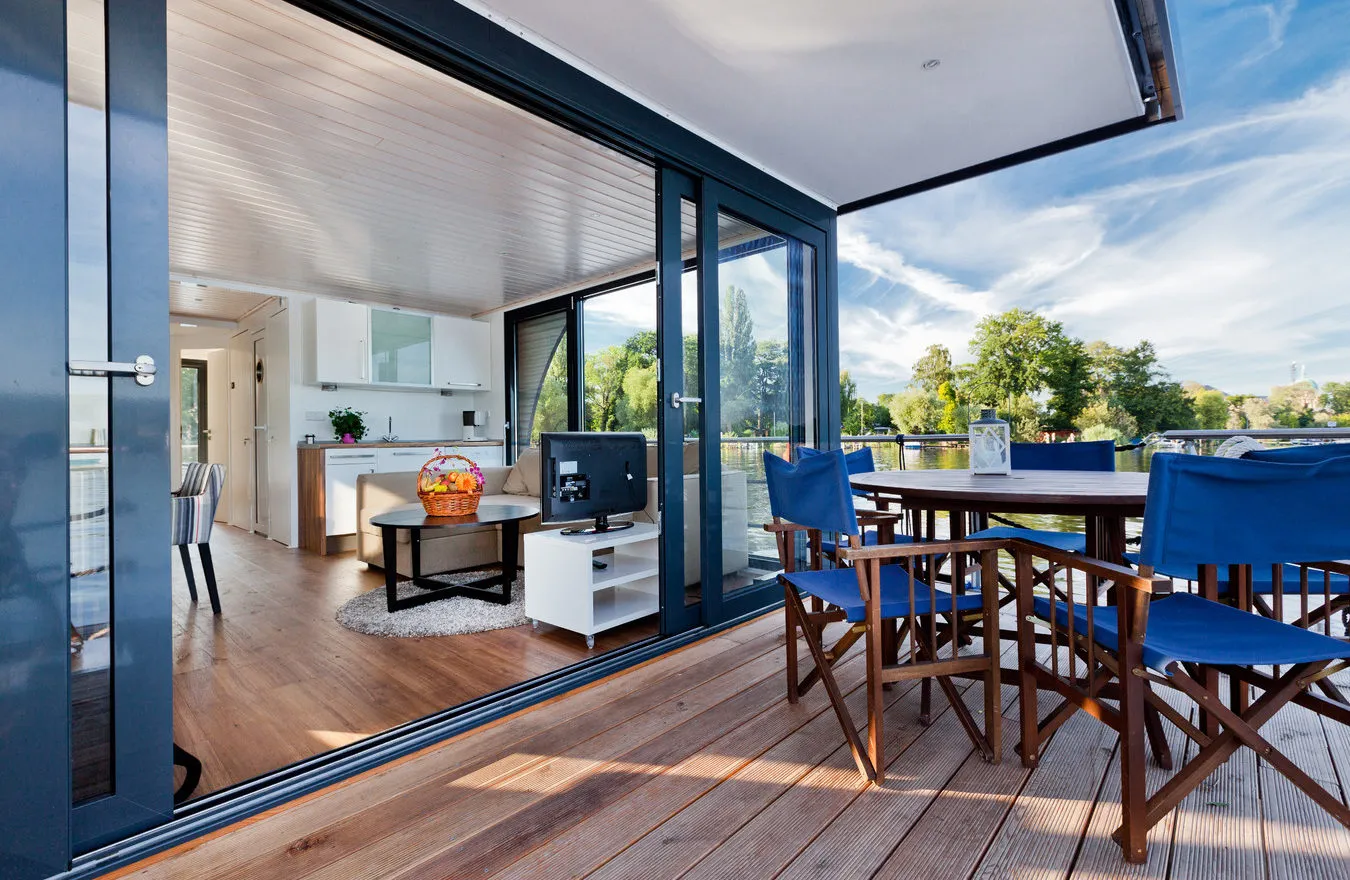

large lockable double sliding doors to the foredeck with floor-to-ceiling fixed glazing right and left
floor-to-ceiling sliding doors and panoramic glazing of the side walls
One round folding window (diameter 60 cm) in each bedroom
floor-to-ceiling windows in bathrooms and/or multifunctional rooms

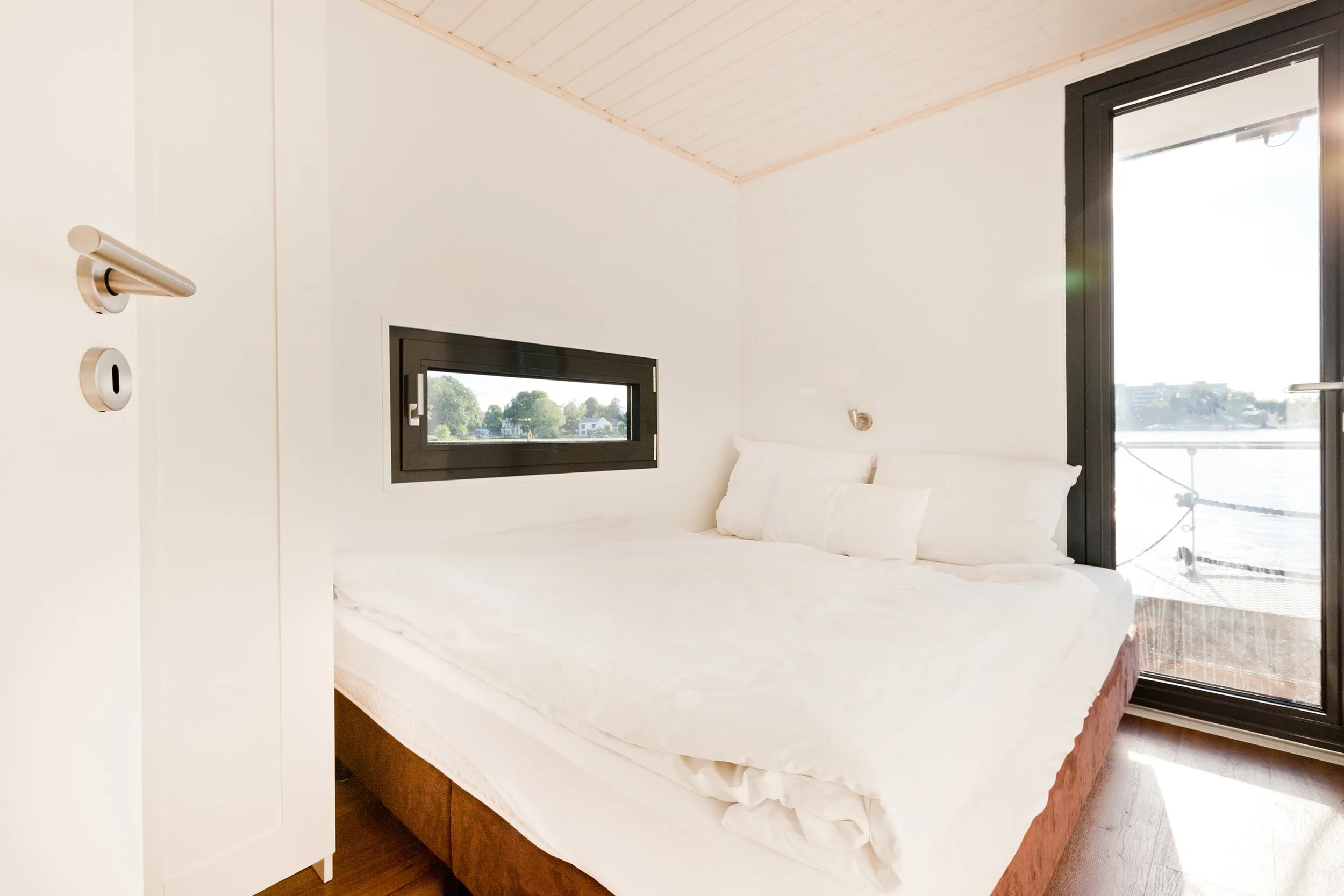

Each bedroom has a sliding door with fixed glazing to the terrace (double sliding door system for only one bedroom)

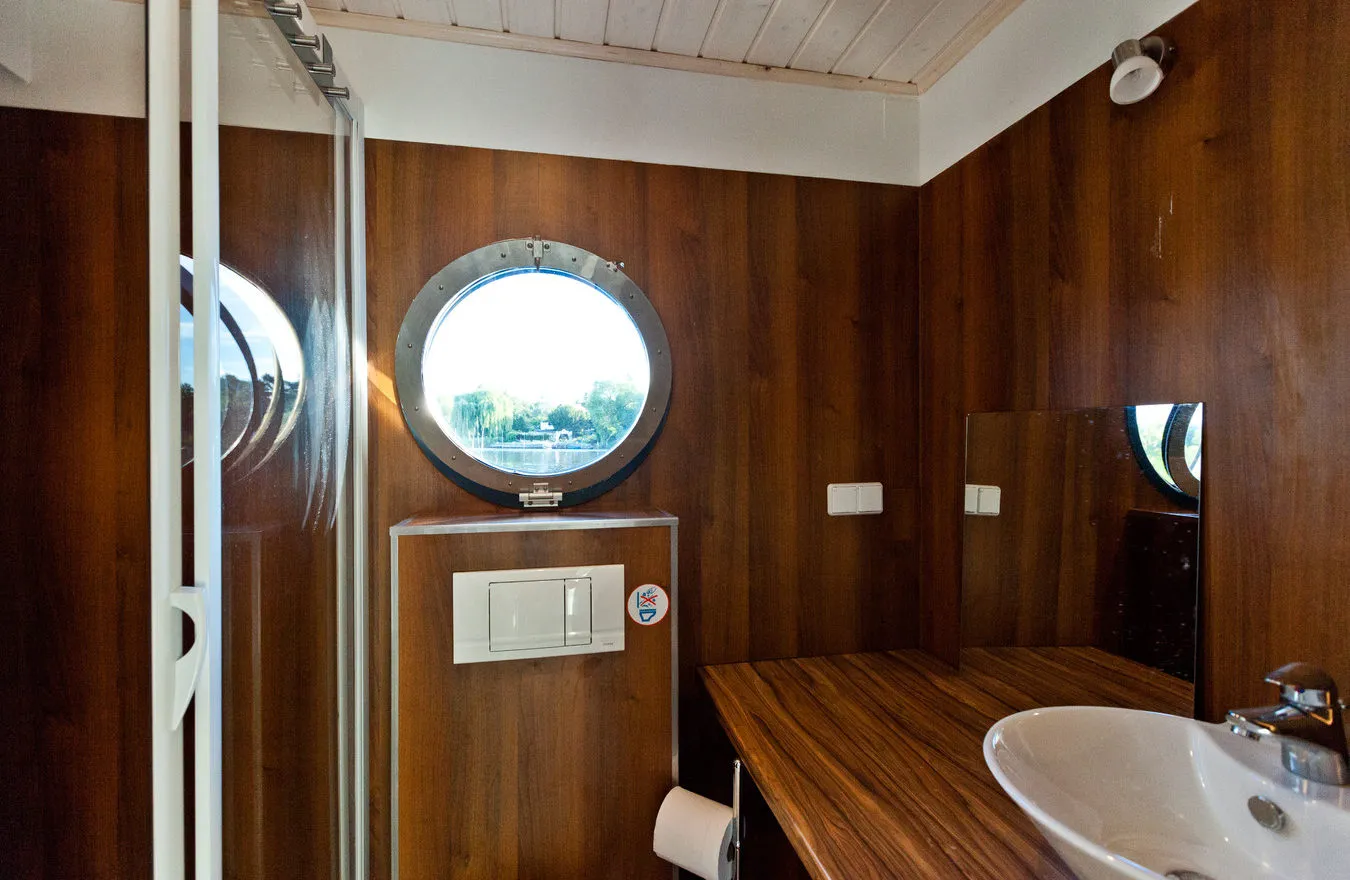

bathroom with sink with mirror + WC + shower with all-glass shower door

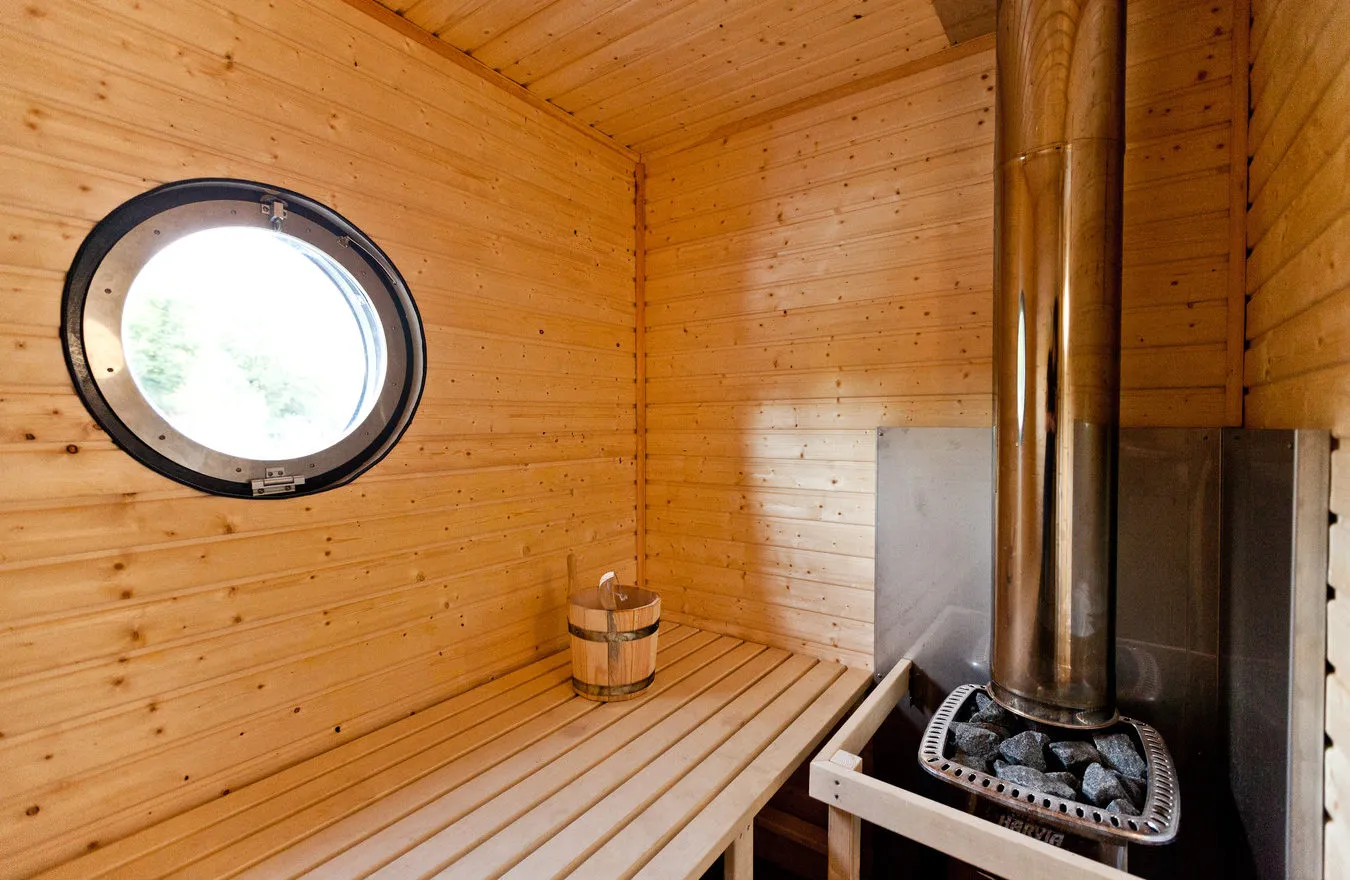

2nd room as a multi-purpose room e.g. for bunk bed, dressing room, storage area (optional sauna or second bathroom)
Smooth white ceilings including built-in spotlights, (optionally with white-glazed real wood panels)
Interior walls as laminate panels and white glazed real wood (optional custom color or other surface materials
Wall covering in bathrooms floor-to-ceiling with wood effect
Built-in cupboards with 2 drawers and hanging compartment (alternatively shelves)
Radio with 2 ceiling speakers in the living room and two on the foredeck (optional upper deck)
High-quality vinyl floor covering with wood effect (fully glued)
Bathroom flooring with glass mosaic tiles in wood design
extendable inner stairs to the bunk on the upper deck
Terrace coverings foredeck, aisle board, stern with plastic covering in ship floor look (optional e.g. Permateek or Flexiteek or in teak as ship floor)
Circumferential impact plank made of real wood
Wood or plastic exterior cladding in the desired color
Warm white LED lighting on the outer cladding
Front and rear terrace with stainless steel post and handrail and 3 ropes

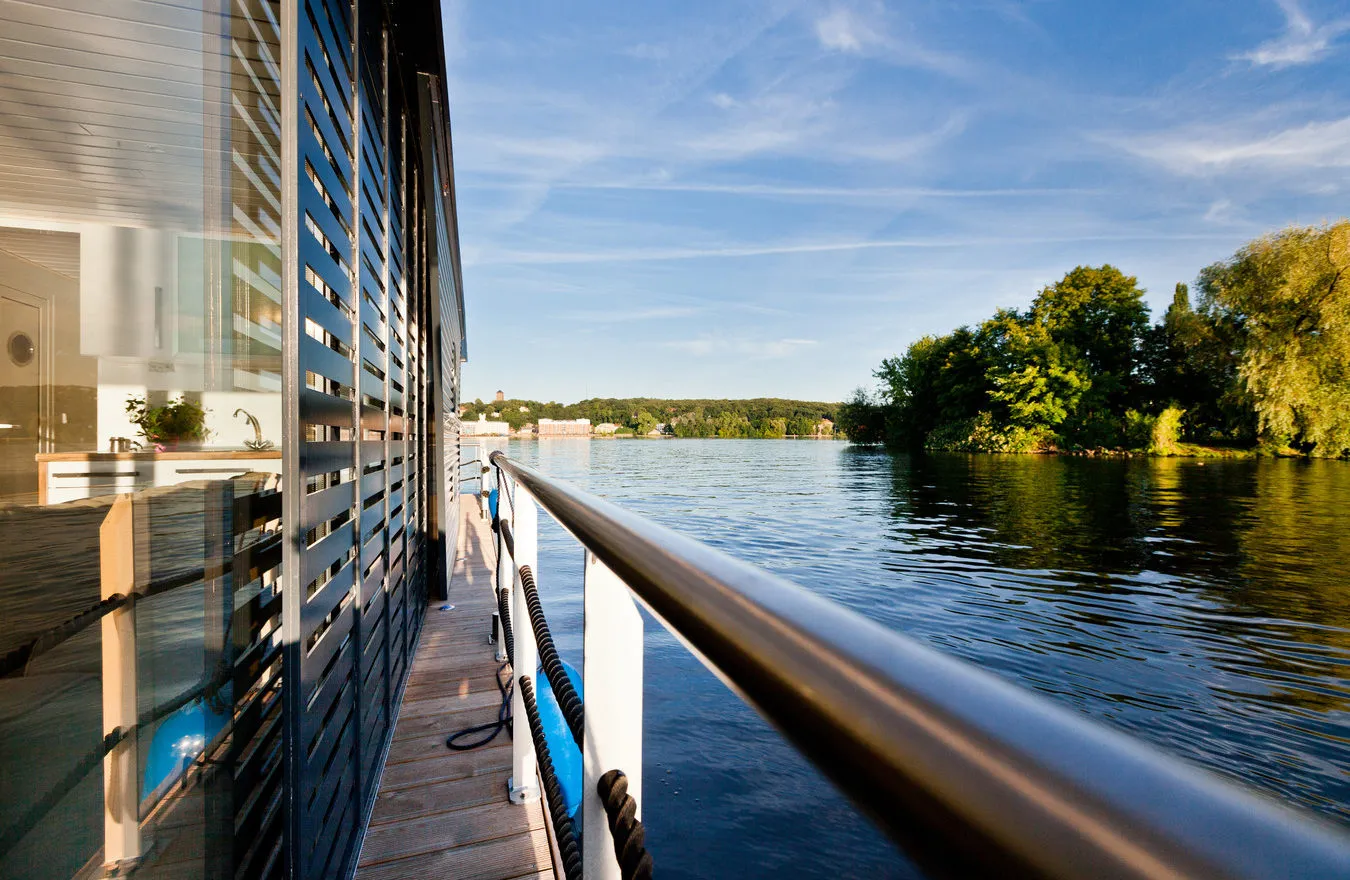

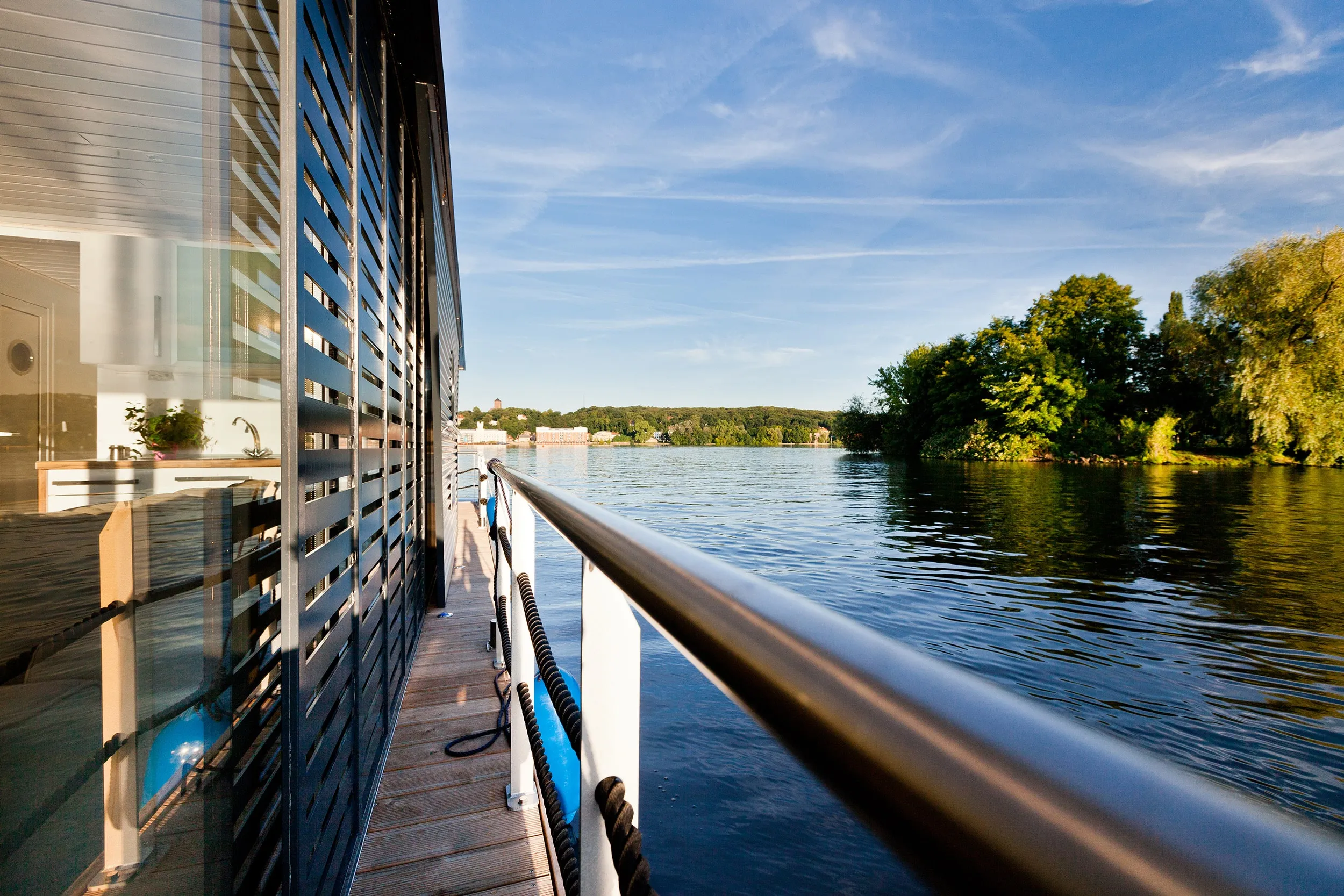

Gangboards with stainless steel handrails and half side rails in front of the floor-to-ceiling windows
6 cleats (middle section, bow and stern per port and starboard)
CE Category: D (Inland)
Electric system for heating, cooking, hot water, refrigerator and light LED navigation lighting
220 V shore power connection (optional 380 V)
3 waste water tanks of at least approx. 400 liters each with suction nozzle
Owner's manual with operating instructions
2 life jackets
LCD television with DVD player
6 fenders with fender line
extinguishers
Swimming ladder in the foredeck

Houseboat ride package

2 x 50 hp motor including controller and tank

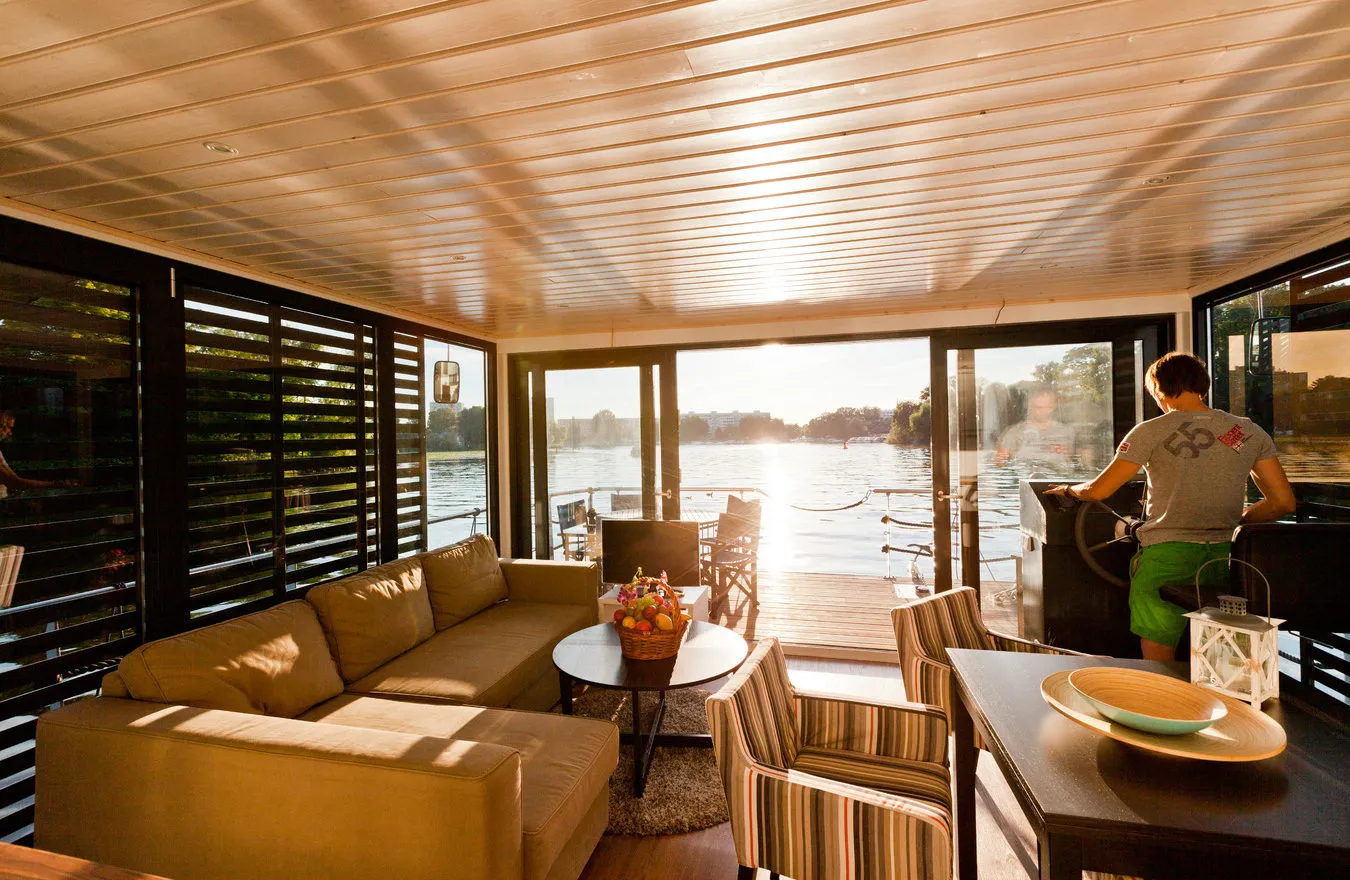

Driving position in the living room with electric starter, throttle lever and on the upper deck in the upper deck cabin
double bow thruster
double stern thruster
Control panel with displays for fresh water, waste water, fuel, battery
gas system/diesel system for heating, hot water, cooking
Frost-free system of the fresh water plant
depth gauge
tachometer
Rear view camera and bridge camera with a screen
2 batteries (consumer battery + starter battery) incl. charger
12 /24/48/230 volt power supply (depending on technical equipment) with converter
Fischer Panda marine generator whisper quiet 4.5 Kw.
1 large baking box on the rear terrace for fuel and generator
Electr. Anchor mop on the foredeck, 2nd anchor with 12 kg line
Fresh water pump + approx. 400 liter tank (optional osmosis fresh water treatment system)
bugle
outside mirror

Special equipment:

rotatable fireplace including roof outlet and base plate
foldable bunk and folding railing
retractable partition for second bedroom
high-quality built-in kitchen with upper and lower cabinets and sink
Appliance set consisting of: fridge-freezer, oven, hob, dishwasher
insect protection (living room bb, bathroom, portholes bedroom, upper deck cabin) bath/shower
Post anchors (2 pieces) up to 2.50 m water depth
Fresh water treatment plant from ambient water (drinking water quality)
Wastewater treatment plant for approx. 2-4 people (not allowed everywhere!)
Interior blinds, foiling of bathroom windows (slat-look privacy screen)
airconditioning
BUS technology with control option via smartphone or tablet
2 x extendable double bed with folding mattress as backrest (Nautilus design)
Photovoltaic system approx. 800 W
Slipp/or crane costs shipyardFurther options and special requests on request

‍

funding

In the past, houseboat financing was difficult because, in contrast to construction financing, it did not offer a land register entry as collateral. However, the situation has improved steadily in recent years, not least due to growing demand. Through our partner comparison portal, you can now discover suitable offers at attractive conditions.
